Hello friends, I hope you all are doing great. In today's tutorial, I am going to share new Magnetic Reed Switch Library for Proteus. We are quite proud to share it as its not been designed before. Our TEP Team has designed it and I think they need a little appreciation. :P You can interface it with any Microcontroller like Arduino, PIC or 8051 Microcontroller etc. As Proteus is a simulation software so we can't produce magnetic field in it. That's why, we have placed a TestPin and when you provide HIGH Signal to that TestPin then it will act as it has magnet around. Similarly, if you provide LOW Signal to that TestPin then it will behave normal and will sense no magnet around. Rite now, we have just designed two Magnetic Reed Switches but soon we will design other Reed Switches as well. So, let's get started with How to download and use Magnetic Reed Switch Library for Proteus.

Magnetic Reed Switch Library for Proteus

  • First of all, download this Magnetic Reed Switch Library for Proteus by clicking the below button:
Download Proteus Library Files
  • You will get a .rar file so unzip it using winrar.
  • Inside this .rar file, you will find three Proteus Library files, named as:
    • MagneticReedSwitchesLibraryTEP.IDX
    • MagneticReedSwitchesLibraryTEP.DLL
    • MagneticReedSwitchesLibraryTEP.HEX
  • Place all these three files in the Library folder of your Proteus 7 or 8 Professional.
Note:
  • Here are the images of these real Magnetic Reed Switch Modules along with our designed modules in Proteus:
Magnetic Reed Switch Library for Proteus, magnetic reed switch in proteus, proteus simulation of reed switch, magnetic reed switch proteus, proteus reed switch, magnetic switch in proteus
  • We have designed these two modules, both of these modules give digital output only in Proteus but in real the reed module with red color also gives analog output.
  • We are not yet able to produce analog output in Proteus, so that's why we have only digital output. :)
  • Now I hope that you have placed all those three Proteus Library files in the Library folder of your Proteus software, so open your Proteus software or restart it.

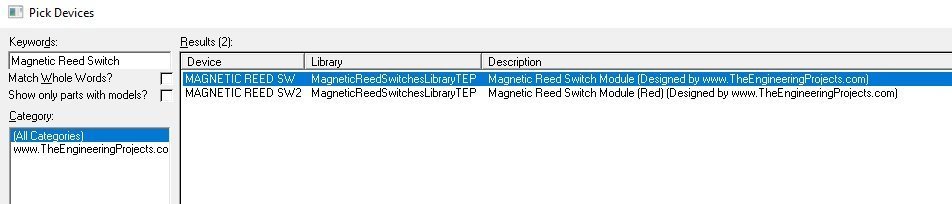

  • In Proteus software, go to your components search box and make a search for Magnetic Reed Switch as shown in below figure:
Magnetic Reed Switch Library for Proteus, magnetic reed switch in proteus, proteus simulation of reed switch, magnetic reed switch proteus, proteus reed switch, magnetic switch in proteus

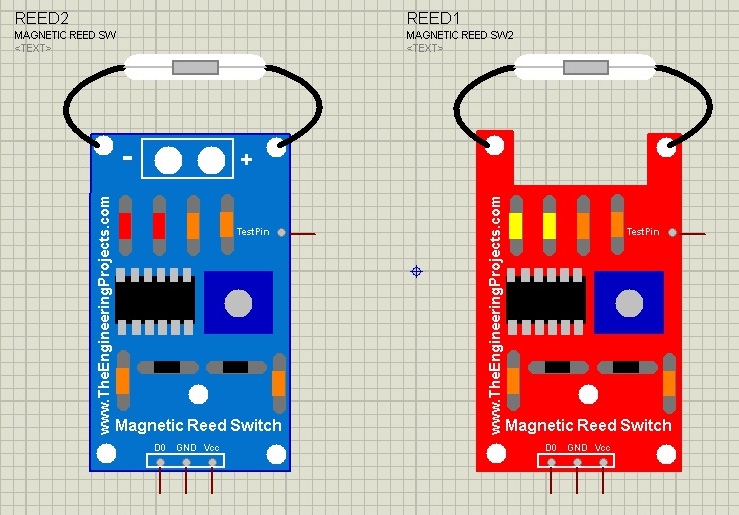

  • Now place both of these modules in your Proteus software and they will look something, as shown in below figure:
Magnetic Reed Switch Library for Proteus, magnetic reed switch in proteus, proteus simulation of reed switch, magnetic reed switch proteus, proteus reed switch, magnetic switch in proteus
  • Double click any of these modules and its Properties panel will open up.

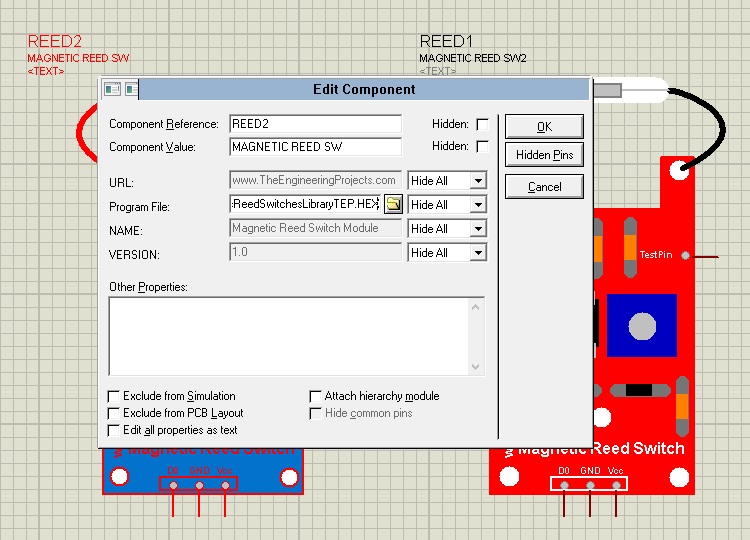

  • Now in the Program File section, browse to our downloaded Library file MagneticReedSwitchesLibraryTEP.HEX as shown in below figure:
Magnetic Reed Switch Library for Proteus, magnetic reed switch in proteus, proteus simulation of reed switch, magnetic reed switch proteus, proteus reed switch, magnetic switch in proteus
  • Now click OK to close this Properties window.
  • You can see we have four pins in total attached to our Magnetic Reed Switch, which are:
    • Vcc: We have to provide +5V at this pin.
    • GND: We have to provide Ground (0V) at this pin.
    • D0: That's the Output Pin, it will be HIGH when some magnet is around otherwise remain LOW.
    • TestPin: As Proteus a simulation so we can't provide magnetic field, that's why we have palced this TestPin. If TestPin is HIGH then it means magnetic field is around and if its LOW then there's no magnet around.
  • I hope you have understood the pinout of this Reed Switch, so now let's design a simple simulation to test them out.

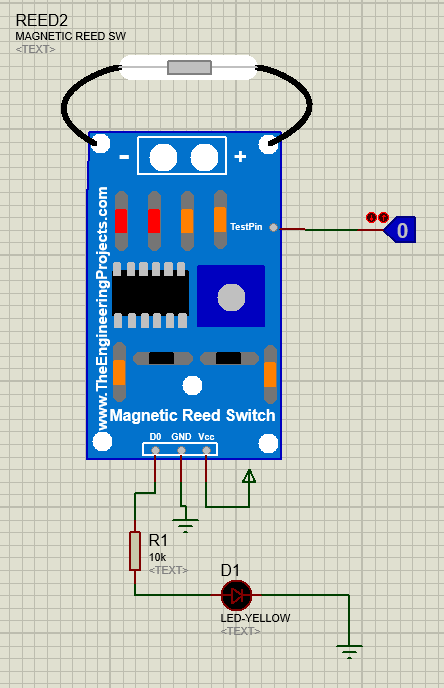

  • So, design a simple circuit in Proteus as shown in below figure:
Magnetic Reed Switch Library for Proteus, magnetic reed switch in proteus, proteus simulation of reed switch, magnetic reed switch proteus, proteus reed switch, magnetic switch in proteus
  • Now run your simulation, and change the Logic State from 0 to 1, which is connected at TestPin.

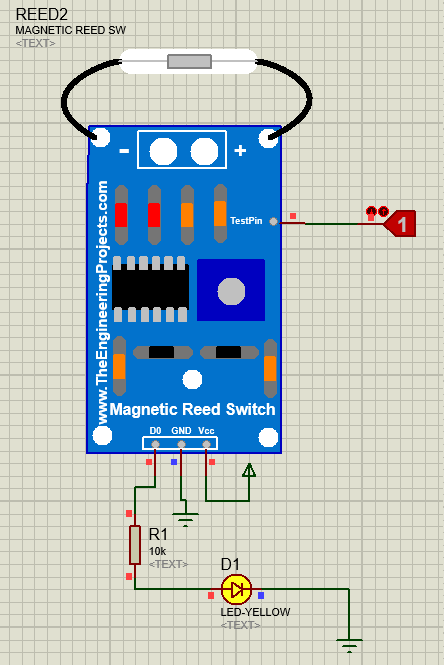

  • If everything goes fine then you will get such results:
Magnetic Reed Switch Library for Proteus, magnetic reed switch in proteus, proteus simulation of reed switch, magnetic reed switch proteus, proteus reed switch, magnetic switch in proteus
  • As you can see in the above figure that D0 Pin is HIGH when I changed the Logic State from 0 to 1 and that's why LED attached at D0 Pin is now ON.

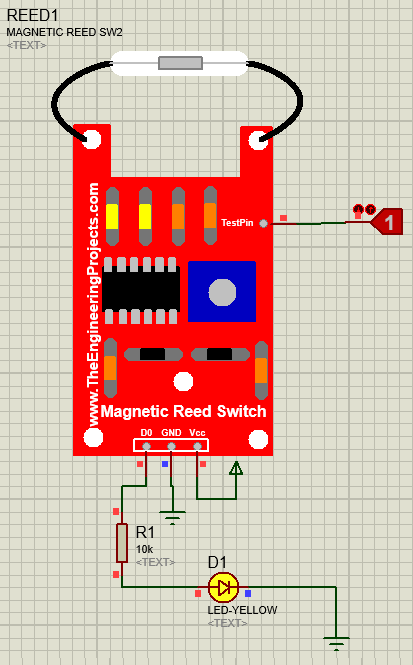

  • I have also designed a similar simulation for the other Magnetic Reed Switch and its ON state is shown in below figure:
Magnetic Reed Switch Library for Proteus, magnetic reed switch in proteus, proteus simulation of reed switch, magnetic reed switch proteus, proteus reed switch, magnetic switch in proteus
  • I have already added both of these simulations in the above download file.
  • So, first add your Library and then run these simulations.
  • I will soon interface this sensor with different Microcontrollers like Arduino, 8051 Microcontroller, PIC Microcontroller etc.
So, that's was all for today. I hope you will enjoy this Magnetic Reed Switch Library for Proteus and will use it in your Engineering Projects. Thanks for reading & have fun !!! :)
