Stepper Motor Speed Control in LabVIEW

Stepper Motor Speed Control in LabVIEW

• You can download the complete simulation for Stepper Motor Speed Control in LabVIEW by clicking below button:

 Download LabVIEW Simulation

• Download .rar file, extract the files from the folder and enjoy the complete simulation for Stepper Motor Speed Control in LabVIEW.

Block Diagram

• First of all I would like to explain you the algorithm for Stepper Motor Speed Control in LabVIEW with the help of block diagram.
• Block diagram for this project is shown in the figure below.

• We send commands from the NI LabVIEW through the serial port i.e. NI LabVIEW serially communicates with the Arduino to control the speed of the stepper motor.
• Arduino sends commands to the L298 motor controller and it decides what to do after manipulating the different commands from Arduino.
• Executed commands are also printed on LCD (Liquid Crystal Diode).

Vitual Instrument's (VI's) Description

• First of all open NI LabVIEW software on your laptop or PC.
• Go to the Block Diagram window and Right Click on it.
• Go to Functions-> Instrument I/O-> Serial and you can see different serial blocks like VISA Write, VISA Read, VISA Serial etc.
• Choose the encircled VISA Configure Serial Port and place it on the Block Diagram window.
• VISA Configure Serial Port block will help us to open the Serial Port before executing the algorithm.
• The screen shot of the Block Diagram is shown in the figure below.

• Go to the first input terminal of the VISA Configure Serial Port block and go to Create-> Control.
• Above step will be helpful to select the COM port of the Arduino board in order to run the program properly.
• Updated Block Diagram window is shown in the figure below.

• Now go to Functions-> Instrument I/O-> Serial, you can see there different serial blocks.
• Choose the encircled VISA Close block and place it on the Block Diagram window.
• The VISA Close block is shown in the figure below and it will be help in closing the Serial Port if needed.

• Now, go to the Functions-> Programming-> Structures and you can see the different structures there like For Loop, While Loop, Case Structure etc.
• Choose the encircled block as shown i the figure below.

• Place all the above blocks in a way shown in the figure below.

• Now, go to the Functions-> Programming-> Structures-> Flat Sequence.
• Flat sequence block is encircled and is shown in the figure below.

• Put your cursor and go to Add Frame After.
• Similarly ad another case after this as shown in the figures below.

• Newly added frame is shown in the figure below.

• Now, go to Functions-> Instrument I/O-> Serial, you can see different serial blocks there.
• Choose the encircled VISA Write Block and place it on the Block diagram window.
• The figure shown below elaborates the above steps.

• Make the connections as shown in the figure below.

• Now, go the Functions-> Programming-> Structures and you can see different types of structures like for loop, while loop, flat sequence etc.
• Choose he encircled block as shown in the figure below.

• Select the Case Structure block and place it on the block diagram window.
• The figure shown below displays the above step.

• Now, go to the input terminal of the write block and go to Create-> Control.
• Change the name of this  block to Command box as shown in the figure below.
• The block diagram window is shown in the figure below.

• Now, go to Functions-> Programming-> Structures and you can see different structures blocks there.
• Choose the encircled block as shown in the figure below.

• Select the Local Variable Block and place it on the Front Panel.
• Right click on it and select Command box as shown in the figure below.

• Go to the input terminal of this local variable and go to Create-> Constant.
• Place C inside that constant.
• The figure below elaborates the above step.

• The above case structure is for the clock wise rotation of the stepper motor.
• Similarly make four further case structures for counter clockwise rotation, accelerating, de-accelerating and stopping the rotation of the stepper motor.
• All the three case structures are shown in the figure below.

• You can see three different case structures in above figure.
• The command box variable having command C will rotate the stepper motor in clockwise direction.
• A command box variable having command A will rotate the stepper motor in counter clockwise direction.
• The command box variable having command H will rotate the stepper motor at higher and higher speed if it is rotating with a lower speed.
• A command box variable having command L will rotate the stepper motor with slower and slower speed if it is rotating at a higher speed.
• .
• The command box variable having command S will stop the rotation of the stepper motor.
• Now, go to the Front Panel and Right Click on it.
• Go to Controls-> Modern-> Boolean and you can see there different Boolean blocks.
• Choose the encircled block as shown in the figure below.

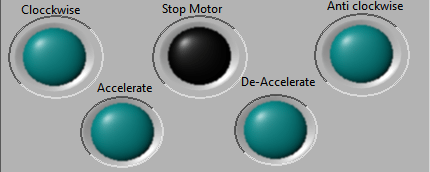

• Select the Round LED block and place it on the front panel.
• Similarly select two more round LED blocks and place them on the front panel as well.
• Change their names from default to Clockwise, Anti clockwise and  Stop Motor.
• All of the above steps are explained visually in the figure shown below.

• The LED shown in the above figure will control the stepper motor on clock wise, counter clock wise direction and will stop the motor as well.
• Now go to the block diagram window and connect these blocks as shown in the figure below.

• At the end, after sending all the commands we must need to close the serial port so that unnecessary exchange of commands could be avoided.
• So I have cleared the all the commands in third frame of the case structure i.e I am sending no commands through the serial port.
• This will be helpful in closing the serial port.
• The figure show below explains all of the above steps visually.

• Now add another case structure to start the program when you want so.
• The figure below shows the newly added case structure.

• Now, go to the Front Panel, the button encircled in the figure shown below is used to start the program when needed.

• Now add a Stop button in order to terminate the program whenever you want so.
• The complete output of the program is shown in the figure below.

• A complete NI LabVIEW Virtual Instrument (VI) is shown in the figure below.

• I have decorated the front panel to make it attractive for the users.
• The final look of the Front panel is shown in the figure below.

• Go to Controls, Modern-> Decorations you can see different decoration blocks there.
• All these blocks are shown in the figure displayed below.

• I have used three decoration blocks encircled with the blue color, to decorate my program.
• Red boundary shows all of the decoration blocks to make your program attractive.
• You can also decorate your programs using this amazing tool.
